    Product advantage

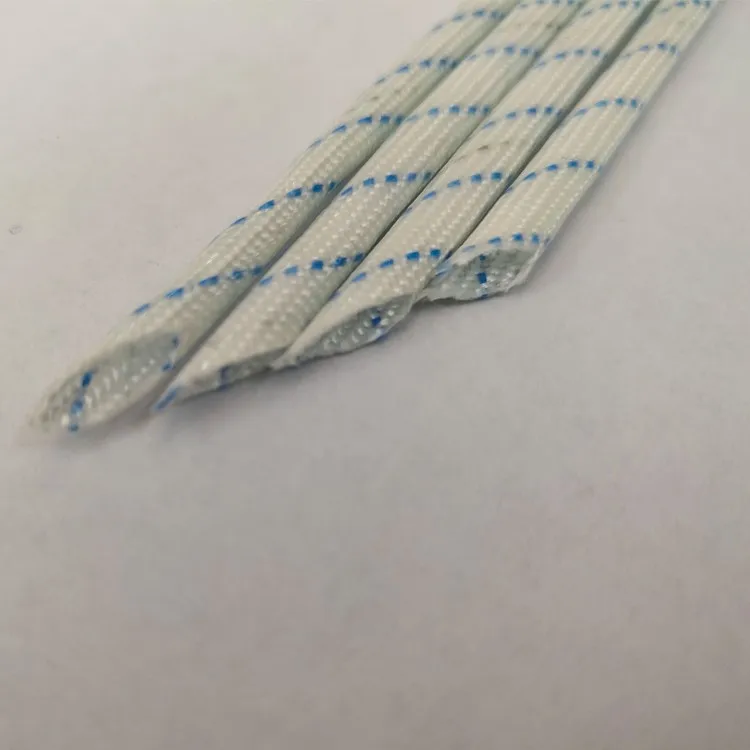

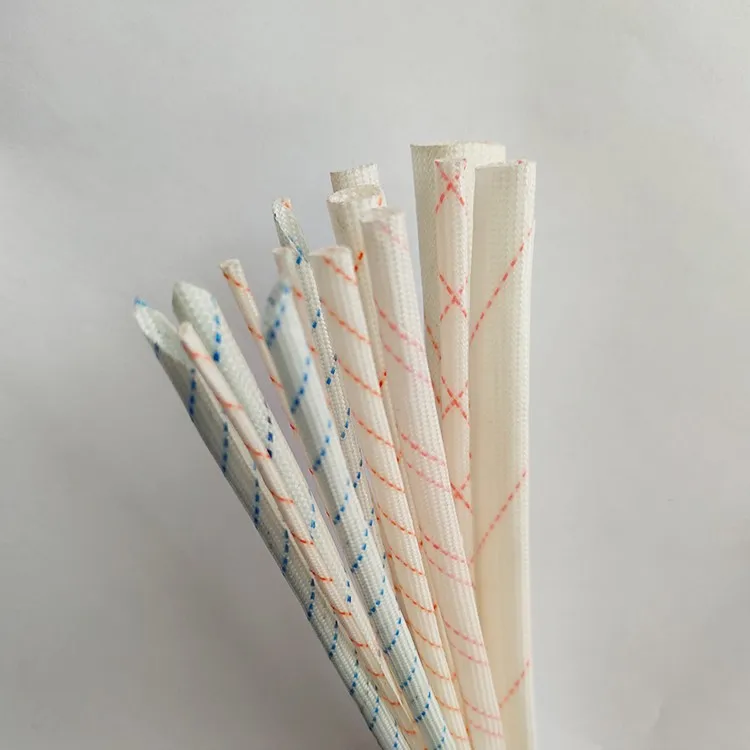

    PVC coated fiberglass sleeving uses an alkali-free glass fiber tube coated with modified polyvinyl chloride resin to be plasticized.

    It has excellent softness and elasticity as well as good dielectric properties and chemical resistance.

    Indicator name
    unit
    Index value
    Exterior
    /
    The coating should be uniform, the surface should be smooth, and there should be no defects affecting product performance.
    Inner diameter and wall thickness
    mm
    Inner diameter
    Wall thickness
    Standard
    tolerance
    406
    407
    Two way(±)
    unidirectional(+)
    Min
    Max
    Min
    Max
    0.3
    0.05
    0.10
    0.20
    0.30
    0.15
    0.30
    0.5-0.8
    0.10
    0.20
    0.25
    0.50
    0.20
    0.50
    1
    0.15
    0.3
    0.25
    0.9
    0.20
    0.75
    1.5
    0.15
    0.3
    0.35
    0.90
    0.20
    0.75
    2
    0.20
    0.40
    0.35
    0.90
    0.20
    0.75
    2.5
    0.20
    0.40
    0.40
    0.90
    0.20
    0.75
    3
    0.25
    0.5
    0.40
    0.90
    0.20
    0.75
    4-6
    0.25
    0.5
    0.50
    0.90
    0.30
    0.75
    8
    0.50
    1.00
    0.50
    1.20
    0.30
    0.90
    10-25
    0.50
    1.00
    0.65
    1.20
    0.40
    0.90
    Breakdown voltage
    Numerical value
    KV ≥
    Projectile slot or straight mandrel / 100mm foil electrode
    Median
    Lowest value
    Median
    Lowest value
    At room temperature
    5.7
    4.3
    3.0
    2.5
    Under high temperature
    2.6
    2.0
    1.5
    1.2
    After damp heat
    2.5
    2.0
    1.8
    1.2
    Insulation resistance
    At room temperature
    Ω
    -
    ≥1.0×109
    ≥1.0×109
    After damp heat
    ≥1.0×108
    ≥1.0×108
    Flame spread
    S
    ≤60
    -
    Any one of the three samples indicates that the flag should not burn. Cotton is also not ignited by ignited or hot particles or ignited drops.
    Solder heat resistance
    -
    Pass (only for nominal inner diameter ≤ 5mm hose)
    Bending after heating
    -
    No visible cracks or shedding of the coating (test temperature: 130±2°C, exposure time: 96±1h)
    Bending at low temperatures
    -
    No visible cracks or shedding of the coating (test temperature: ≤-25±2°C)
    Product details

    Applications:
    Suitable for wiring insulation and mechanical protection of motors, electrical appliances, instruments, radios, etc.

    Availability:
    -Length: 1000+20/-10mm. Continuous can be supplied on request.
    -Colour: Special colour can be produced on request.

    Wrapped by proctective film;
    Packed by standard import & export cartons or.iron pallets.

    Suitable for wiring insulation and mechanical protection of motors, electrical appliances, instruments, radios, etc.
